FastWave

Cross-Platform Wave Viewer

---

Default state - Dark (new design)

Loaded files - Dark (new design)

Default state - Light (new design)

Loaded files - Light (new design)

Browser (Firefox)

Desktop, miller columns and tree

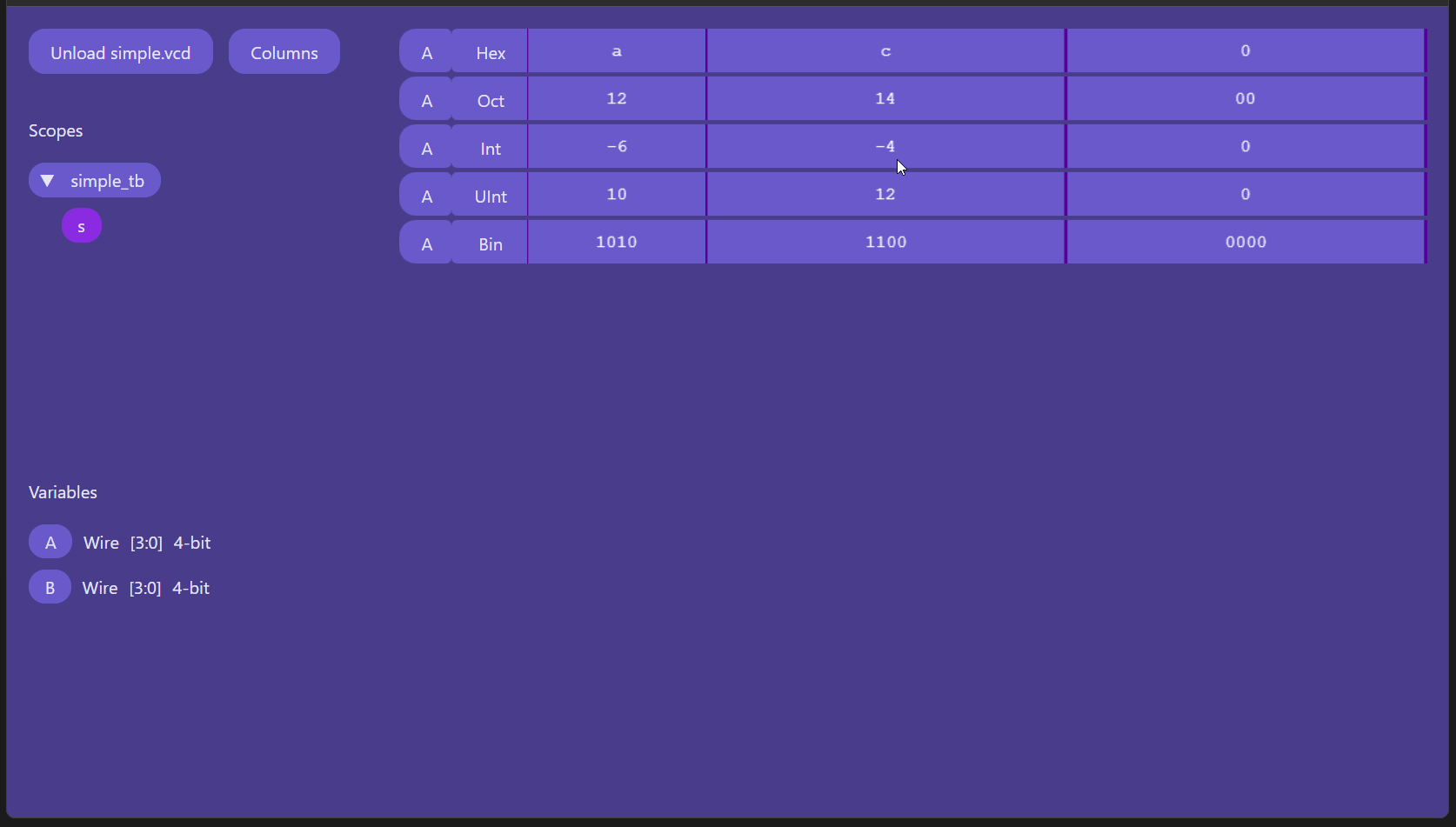

Zoom, pan and basic number formats

Zoom and all formats

Javascript commands

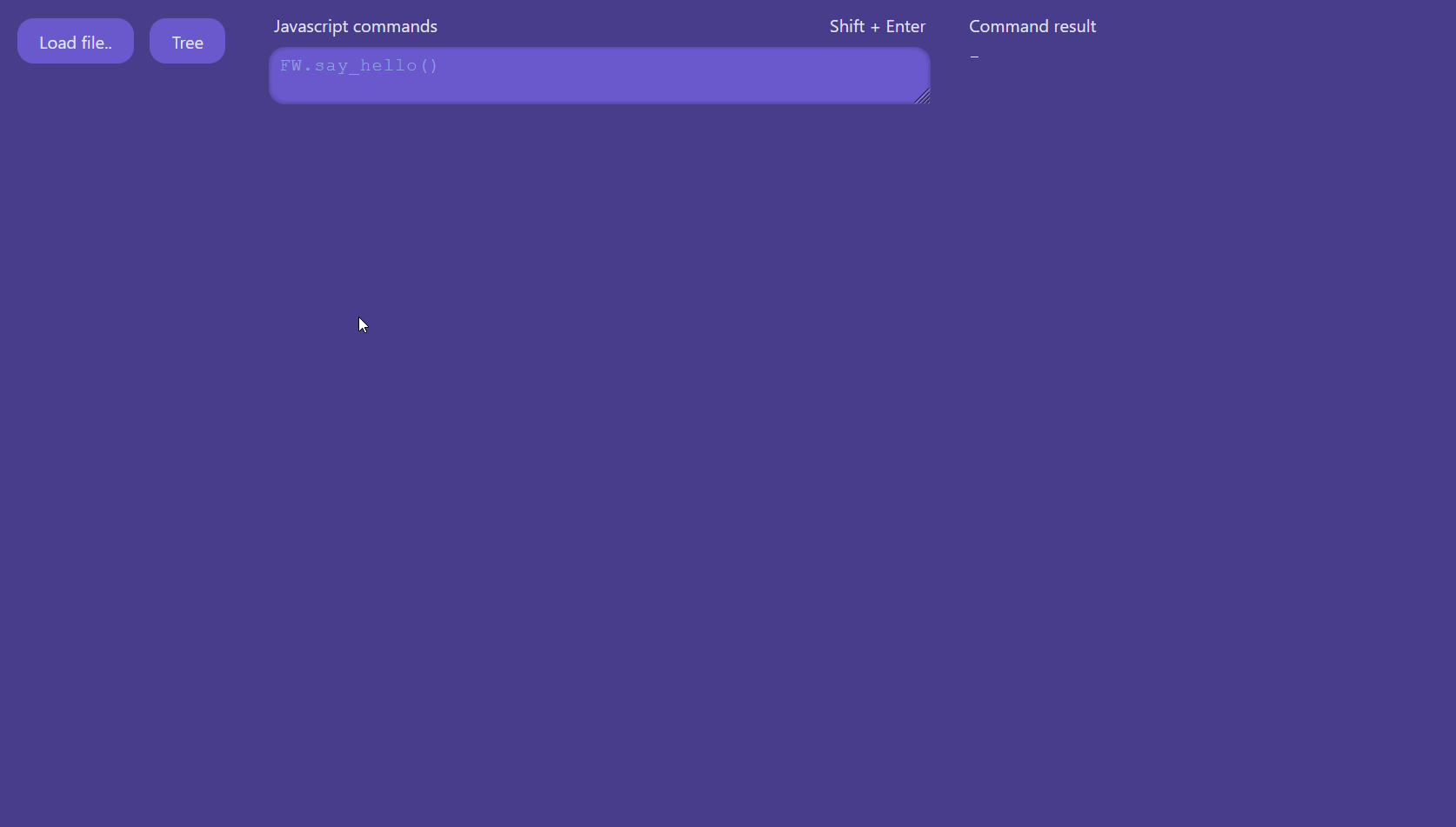

Load and save selected variables

Decoders (Plugins) Demo

Decoder Interface

Diagrams - open, edit, JS API

Diagram Connector Demo

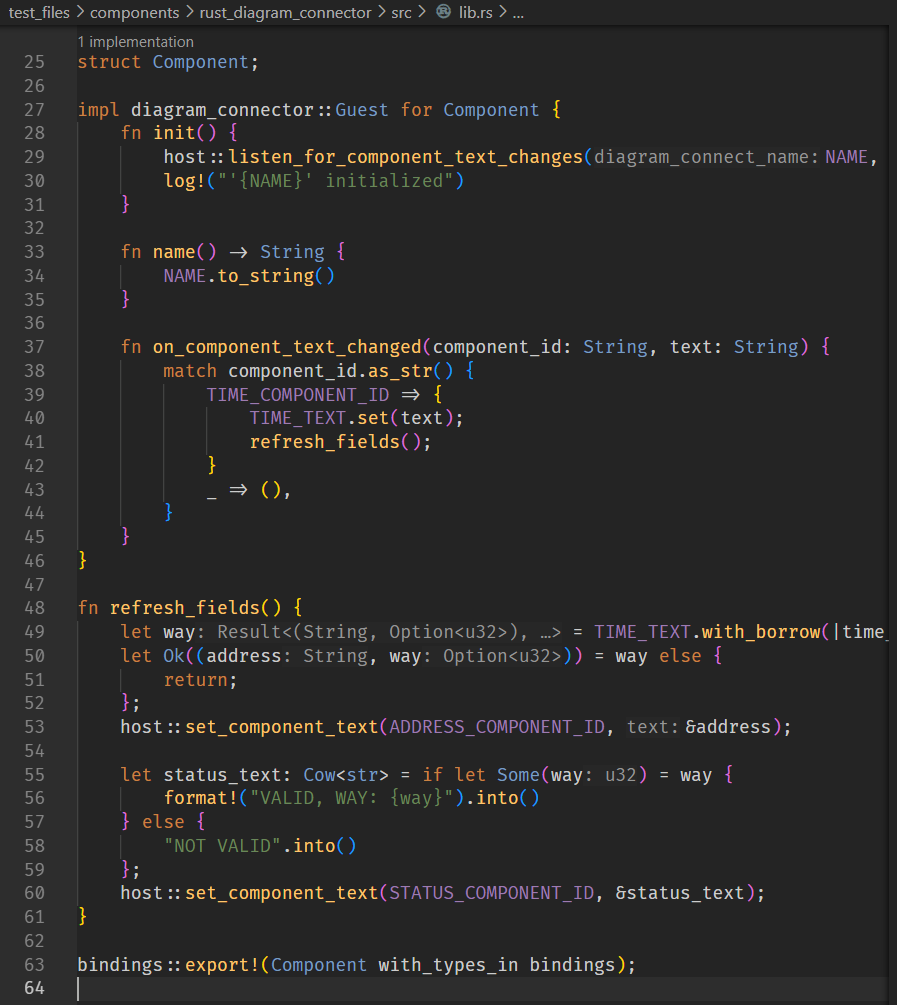

Diagram Connector Code snippet

---

Installation (desktop version):

Download and install from Releases

---

Requirements to build from source:

1. Install Rust
2. Install Node.js
3. cargo install cargo-make
4. makers install

---

Start the desktop version:

1. makers start

Troubleshooting:

• In case of Tauri compilation errors, install system dependencies: https://beta.tauri.app/guides/prerequisites/

• Possible Tauri runtime errors in terminal of VSCode installed from Linux Snap package manager:

  Failed to load module "colorreload-gtk-module"

  /usr/lib/x86_64-linux-gnu/webkit2gtk-4.1/WebKitNetworkProcess: symbol lookup error: /snap/core20/current/lib/x86_64-linux-gnu/libpthread.so.0: undefined symbol: __libc_pthread_init, version GLIBC_PRIVATE


  Fix it by installing VSCode directly from official .deb bundle or try to unset multiple env variables - more info in https://stackoverflow.com/questions/75921414/java-symbol-lookup-error-snap-core20-current-lib-x86-64-linux-gnu-libpthread

---

Production build of the desktop version:

1. makers bundle
2. Runnable executable is in target/release
3. Installable bundles specific for the platform are in target/release/bundle

---

Start in a browser:

1. makers start_browser
2. Ctrl + Click the server URL mentioned in the terminal log

---

Start in a browser in the release mode:

1. makers start_browser_release
2. Ctrl + Click the server URL mentioned in the terminal log

---

Steps before pushing:

1. makers format

---

Rebuild Decoders:

See test_files/components/[language]_decoder/README.md

---

Test files

See the folder test_files.

---
